Quality Checker
Camera quality control
- Up to six channelspossible
- Each channel can run its own product
- Accurate product rejection
Let’s improve your business together with the Quality Checker. Assessing the quality of your product was never this accurate.
The Quality Checker is an unique camera system that determines if your products meet your quality requirements.
Camera quality control
Features

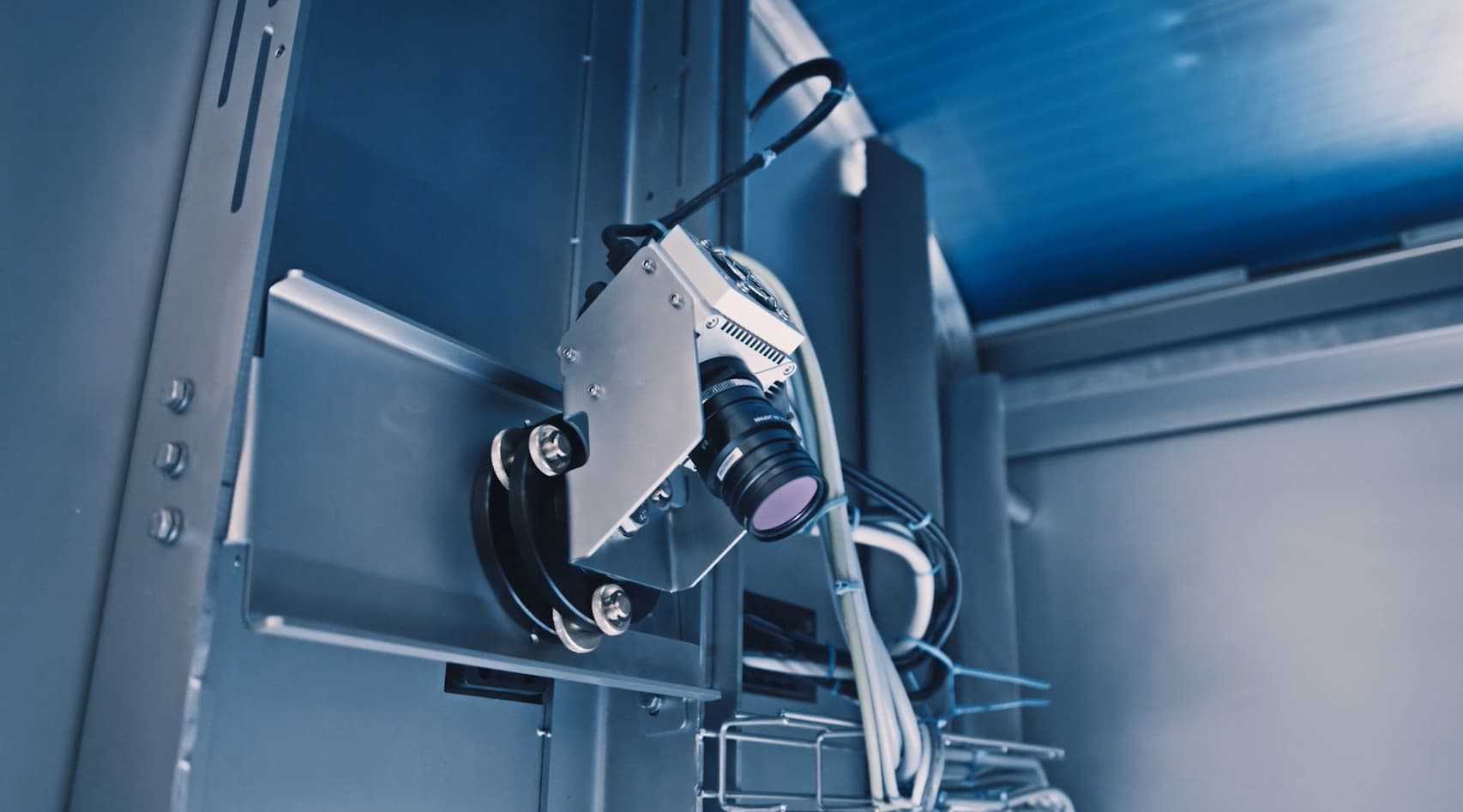

Variable
Capacity depends on amount of quality requirements to check

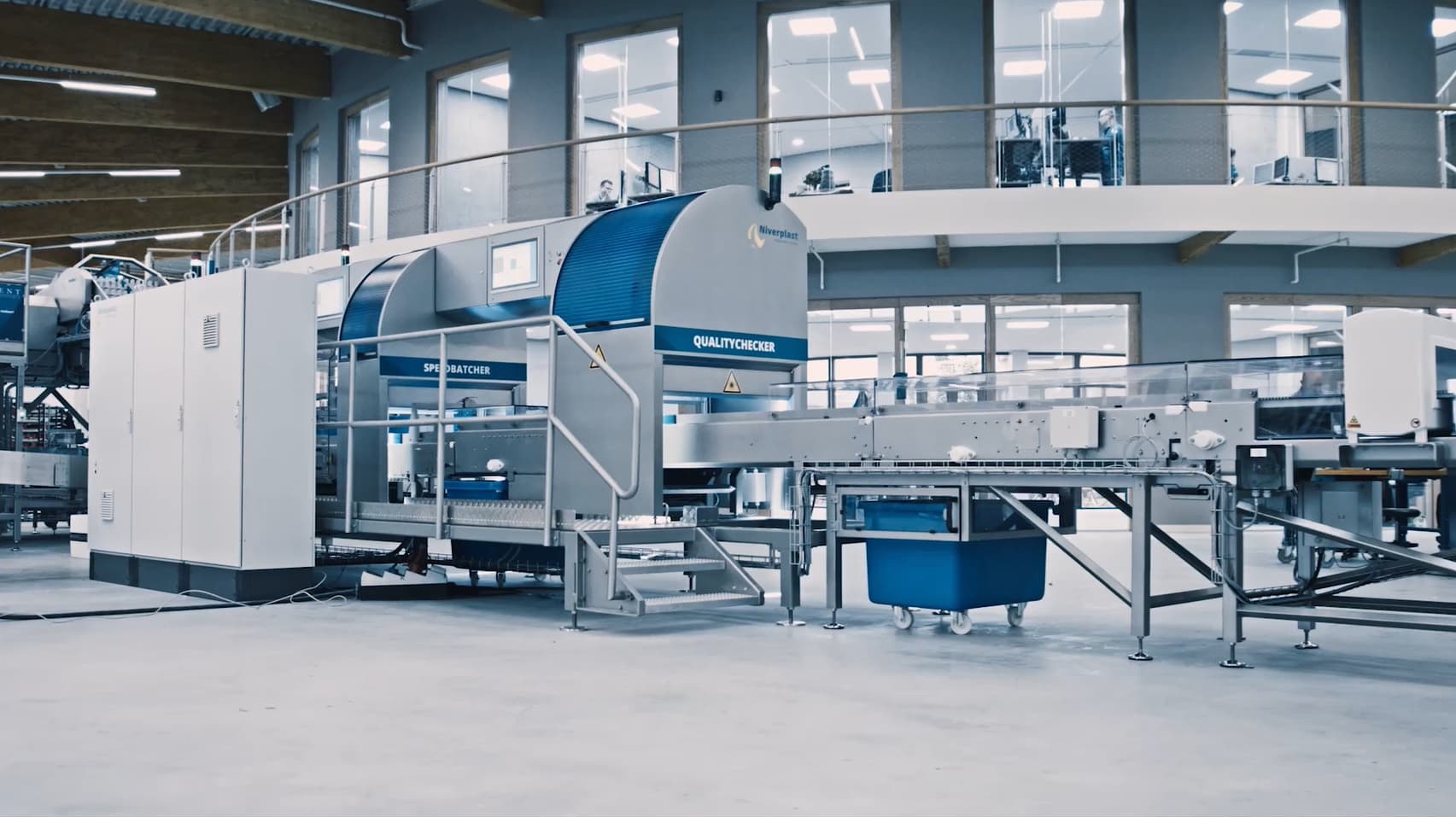

Compact
Compact design with a small floor print
Easy
Very easy to adjust, operate, maintain and clean
Quality Checker
Specifications
- Multiple channels, which makes it possible to check multiple products at once
- Possibility to use up to 8 retractable belts, enabling accurate product rejection.
- Easy adjustment of feature boundaries
- Capable to match any production speed
- Retract conveyor always servo-driven, even with 2, 6 or 8 belts
- Saving data of checked requirements per product
- System coupled with reject module by Niverplast software
- Easy learning system for new products
- Completely executed in stainless steel

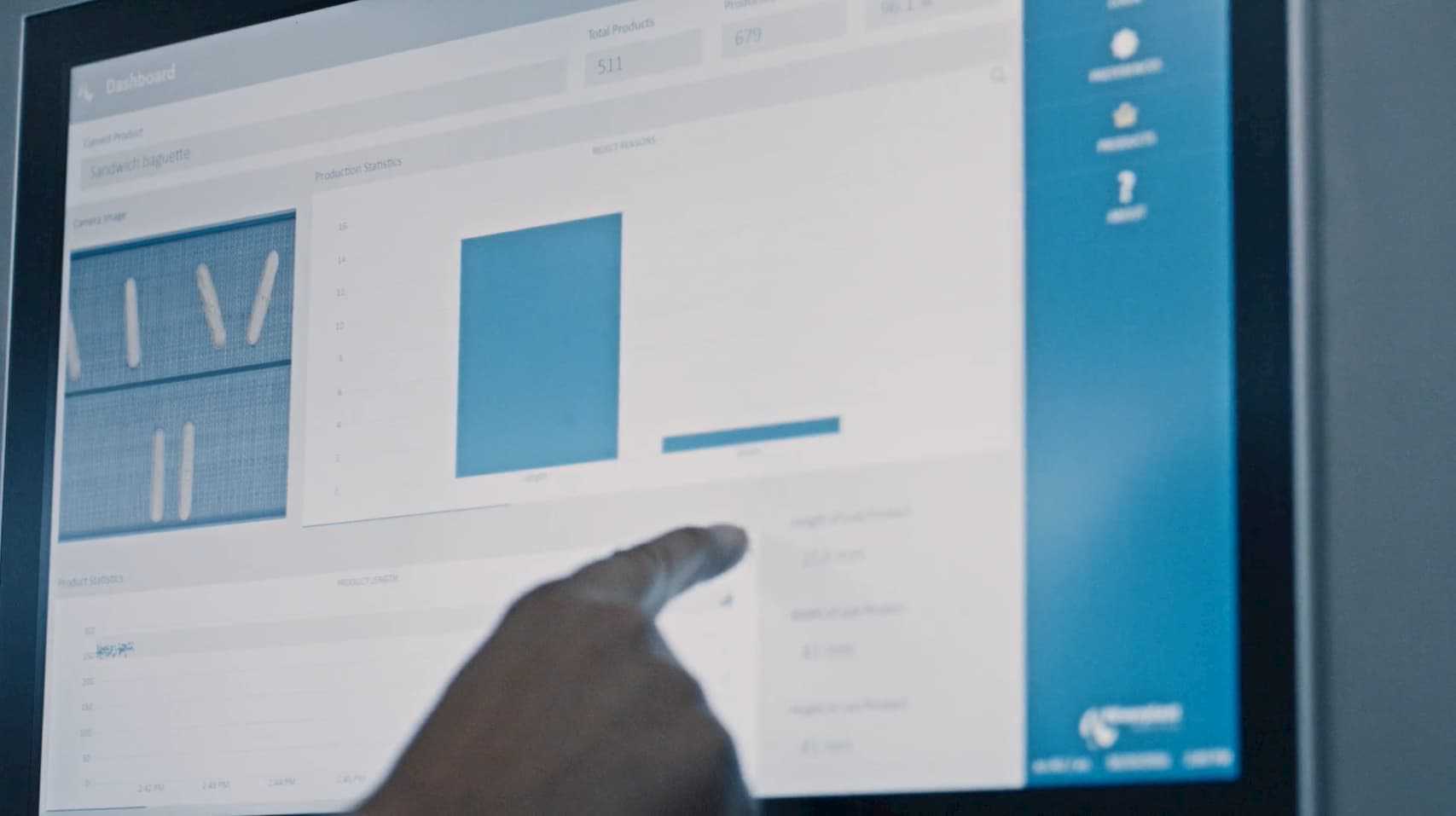

- Touchscreen with interactive software for easy and clear operation
- Optional: 6 or 8 reject belts
- Optional: SQL software tool
More information?
3 steps
How it works

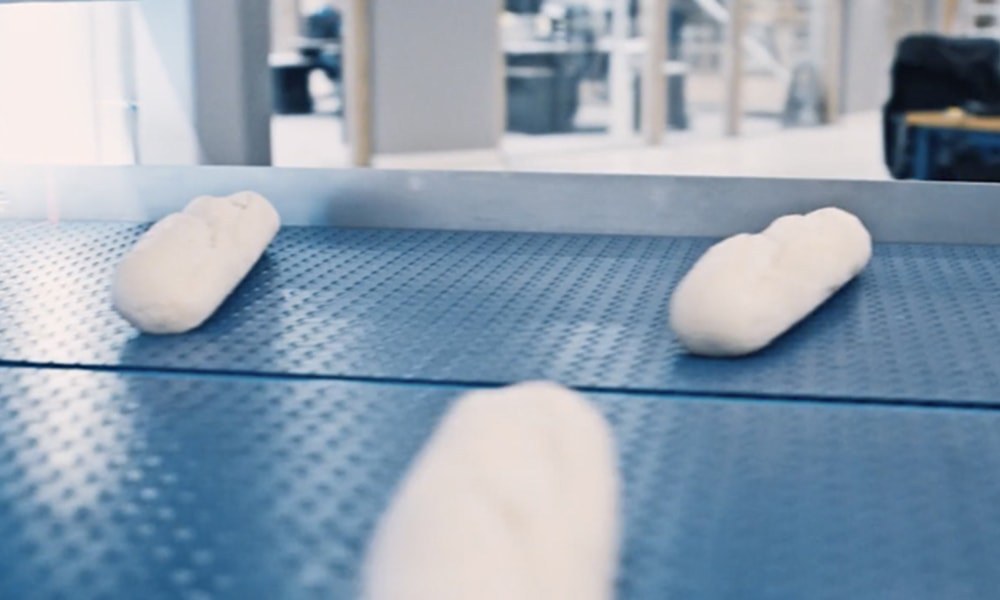

Product infeed
After adjusting to the right requirements, the first products enter the Quality Checker. Because of the multiple channels it is possible to check two products at once, for example baguettes and Kaiser rolls.
Check requirements

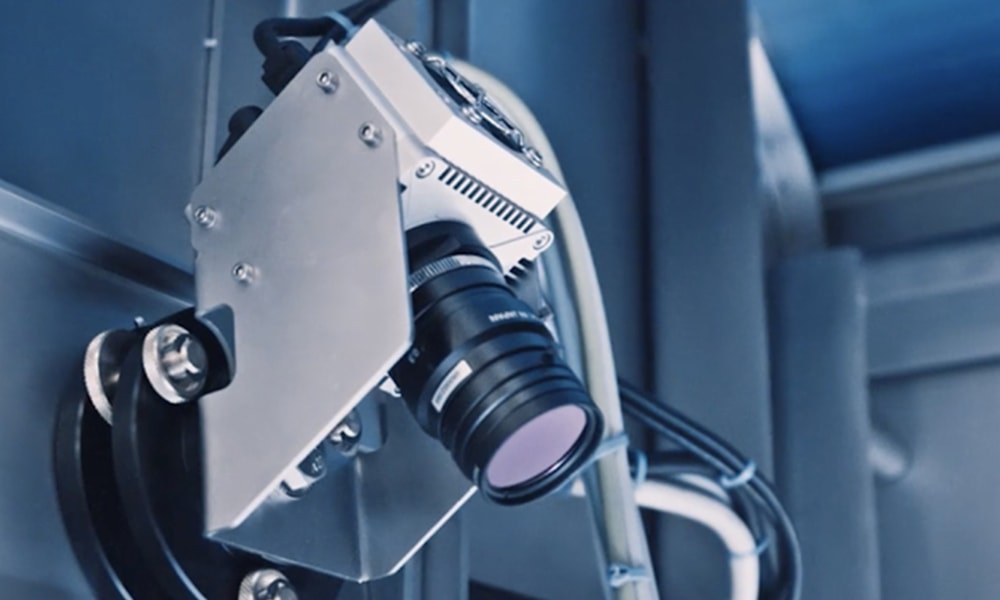

Colour cameras check the set of quality requirements. The camera system is able to check dimensions (length, width, height and roundness - accuracy 2 mm), browning (over and under baked products) and black spots.
Reject products

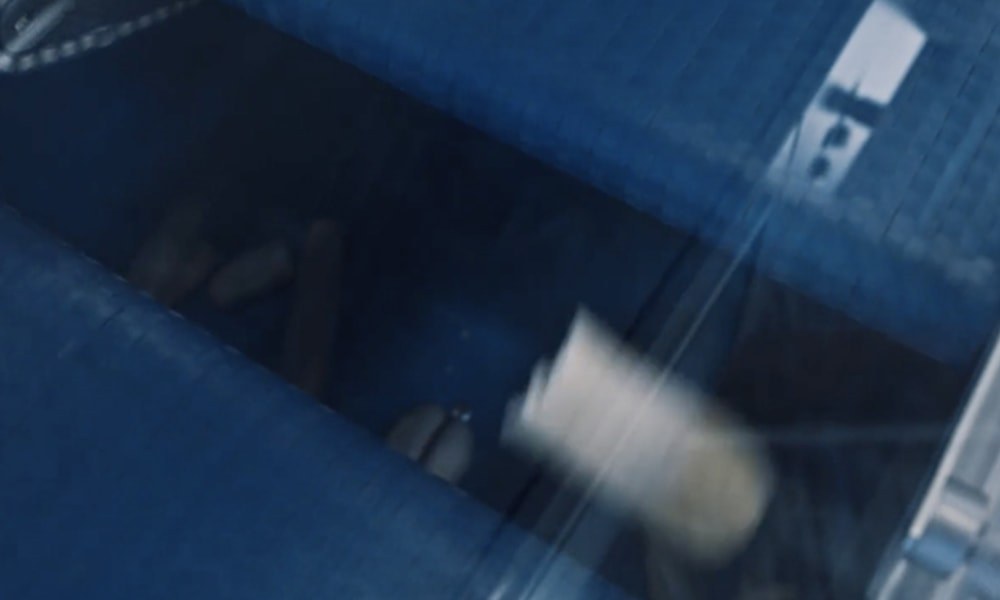

The Quality Checker rejects disapproved products. The reject system contains tracks which are equipped with a retractable conveyor. When a product is disapproved, the conveyor will retract and a gap occurs. Due to the two tracks, the unjust reject of approved products is minimalized.
Camera quality control

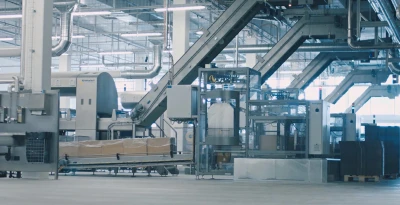

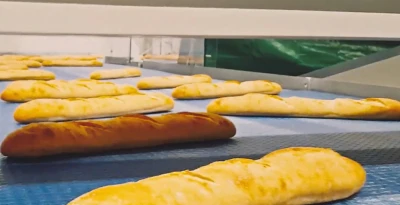

Our successful cases with Quality Checker
Good to know
Frequently Asked Questions
Yes. For stick-shaped products such as baguettes and breadsticks, the Quality Checker offers a linearity check. This function measures overall straightness and local deviations along the product. Products that exceed the configured curvature limits can be automatically rejected.
The Quality Checker can inspect products ranging from 30 mm to 600 mm in length and up to 160 mm in height. Product width depends on the selected conveyor lane width but starts from 30 mm.
Yes. A metal detector can be installed directly before the Quality Checker. The flat conveyor surface helps stabilise products before inspection and does not interfere with measurement accuracy.
A minimum of one metre of straight conveyor is required before the inspection zone. This ensures that products remain stable while passing underneath the cameras. Curved, inclined or declined conveyors should not be positioned directly before the machine.
Yes. A metal detector can be installed directly before the Quality Checker. The flat conveyor surface helps stabilise products before inspection and does not interfere with measurement accuracy.
Yes. The Quality Checker is fully configurable for different bakery product types. Inspection parameters such as dimensions, straightness, hole detection and reject limits can be adjusted to match the quality requirements of each specific bakery product.
