Bag sealer machine

Bag sealer machine VarioSeal: some specifications and interesting facts

Before we explain to you how our bag sealer machine VarioSeal works, we would like to share some specifications and interesting facts with you. Did you know the bag sealer can handle up to 12 boxes or crates per minute? You can add, adjust and store recipes for each box size. The VarioSeal guarantees a continuous operation - there is no change over time. The very compact design is available in a left- or righthanded version. There is an on-screen HD visualisation of warnings and possible machine functions. The bag sealer machine operates stand-alone as well as in any automatic production line. And if you want, we can customize your VarioSeal to the smallest detail. Whether you choose the standard bag sealer machine or a custom-made one, we guarantee the lowest total cost of ownership.

The VarioSeal bag sealer machine: this is how it works

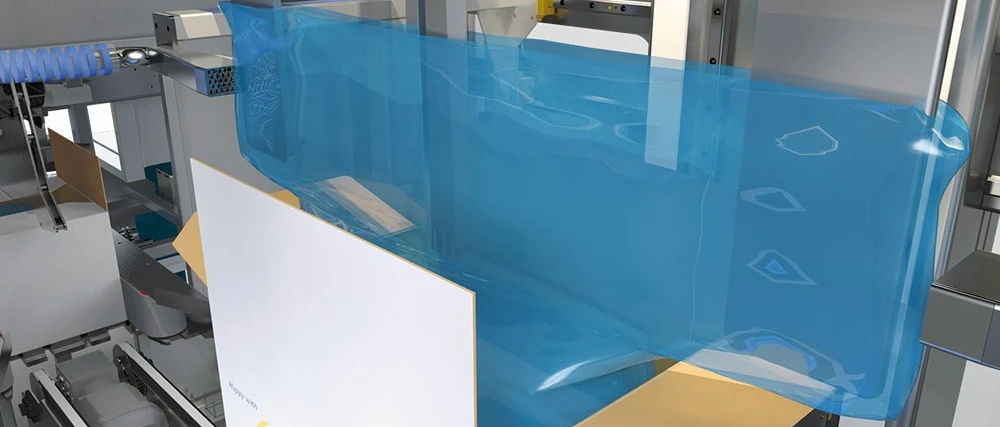

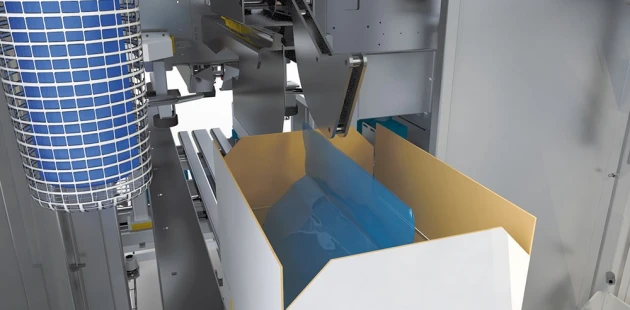

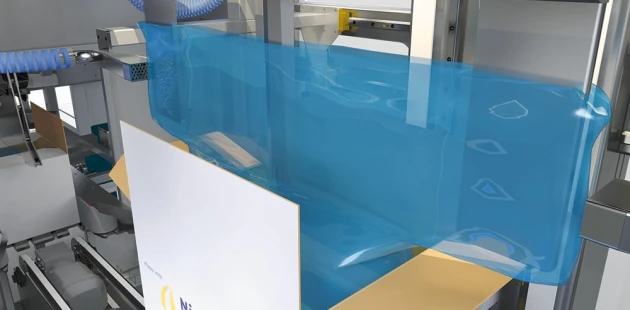

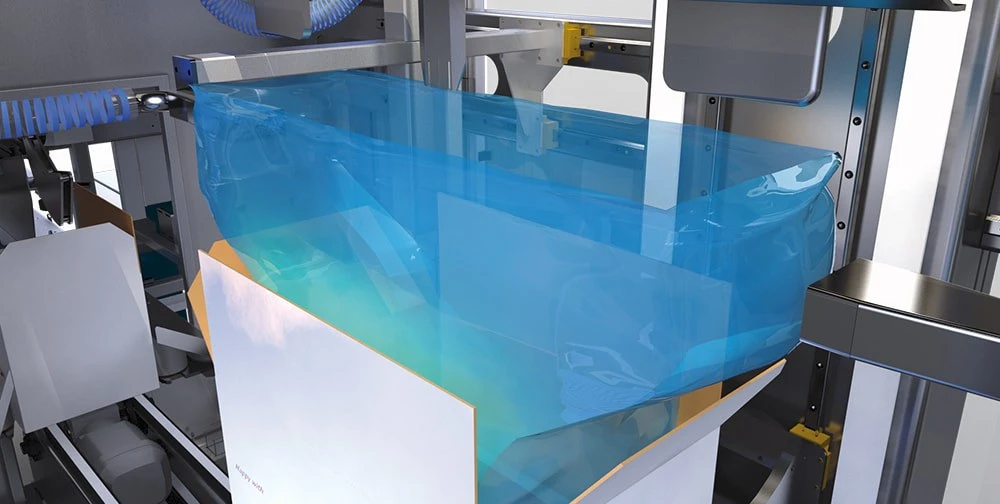

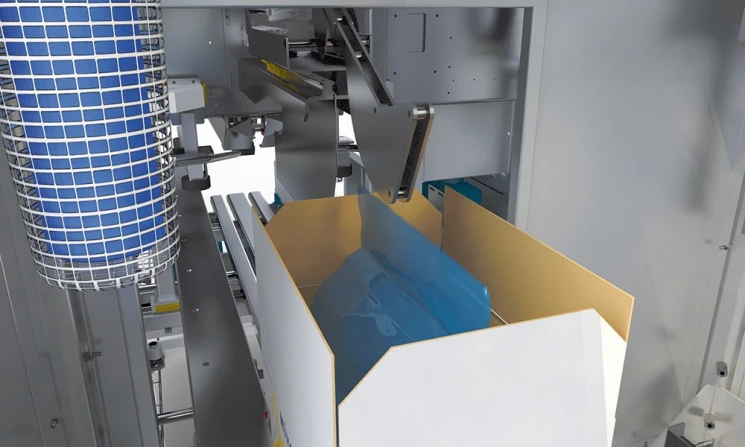

Now you know a litte bit more about our bag sealer VarioSeal, we would like to explain to you how this machine actually works. At the infeed of the VarioSeal the box (or your product carrier) is centered to ensure its position. Optionally the weight of the box is checked in this step. Rejected boxes are ejected onto an error conveyor. The box is then lifted towards the seal unit. Here two vacuum cups pick up the bag on the short sides of the box. The box is now moved downwards to release the bag from the box flaps. Two spreading fingers and a vacuum nozzle are placed in the bag. The spreading fingers take over the bag from the vacuum cups and spread it. A light vacuum to prevent balloon forming is applied on the bag in this step. After that, the bag will be sealed by sealing bars. Our knowledge of sealing pressure, sealing temperature and sealing time ensures a perfect seal.

VarioSeal: a couple of unique options

The VarioSeal has a couple of unique options. Optionally the waste material above the seal can be cut and removed. And there is also an option to close the box by the integrated taper. Then your product is safely packed in a closed bag and a closed box. The product is ready to be transported to your customers. Other options that allow you to customize your machine are

• Removal of excessive material above the seal
• Suitable to seal barrier materials
• Completely executed in stainless steel
• Integrated box (top)taper with automatic settings
• Modified Atmosphere Packaging (MAP)
• Data printing
• Impulse sealing bar suitable for seal barrier materials
• Removal of excessive material above the seal
• Integrated check weigher

Bag sealer machine VarioSeal combined with the VarioClip and VarioFold

Good to know: the bag sealer machine VarioSeal can be perfectly combined with our VarioClip, a high quality packaging solution for bag clipping, and our VarioFold, a high quality packaging solution for bag folding. But there are more possibilities at Niverplast. For example, this bakery in Austria uses the VarioSeal, the CombiPlast (for case erecting and bag placing), our Quality Checker (for camera quality control), our Speed Batcher (for camera counting) and our Box Loader (for case filling). This customer from the UK, which makes delicious pastries, uses the VarioSeal and the CombiPlast. And this Dutch customer employed in the oils and fats industry uses the VarioSeal, our OLAF (an oil and fat filling machine) and our CombiPlast. Just click on the links to check out the cases and to get inspired!

Contact us about a bag sealer machine

Do you want to discover all the advantages of our bag sealer machine VarioSeal? Just contact us.
