Vertical form fill seal machine

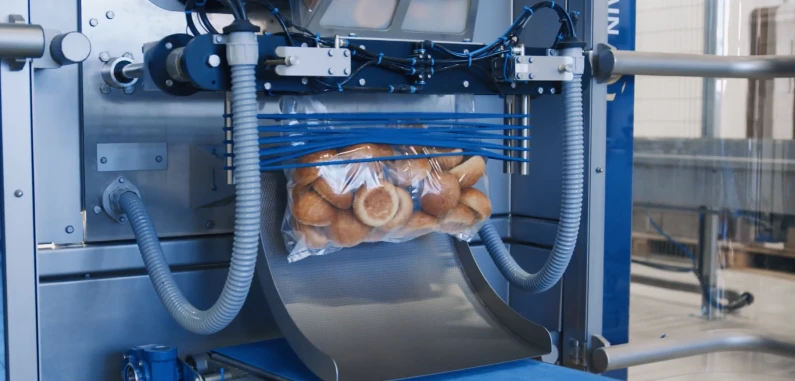

SEPP, our vertical form fill sealing machine

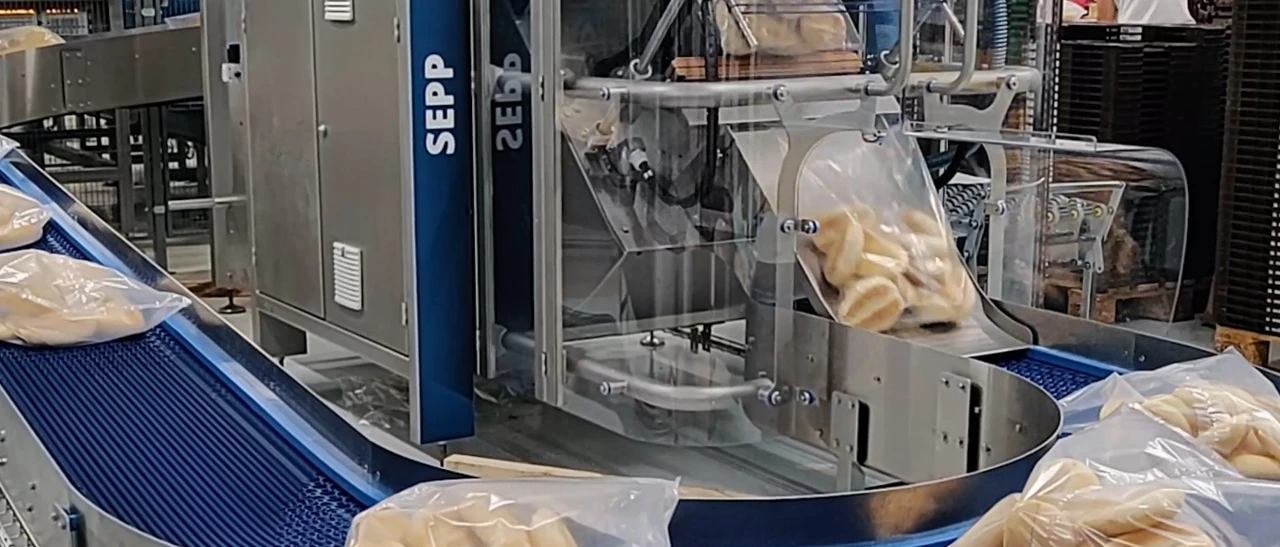

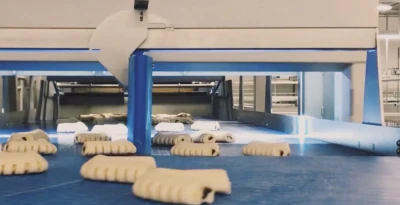

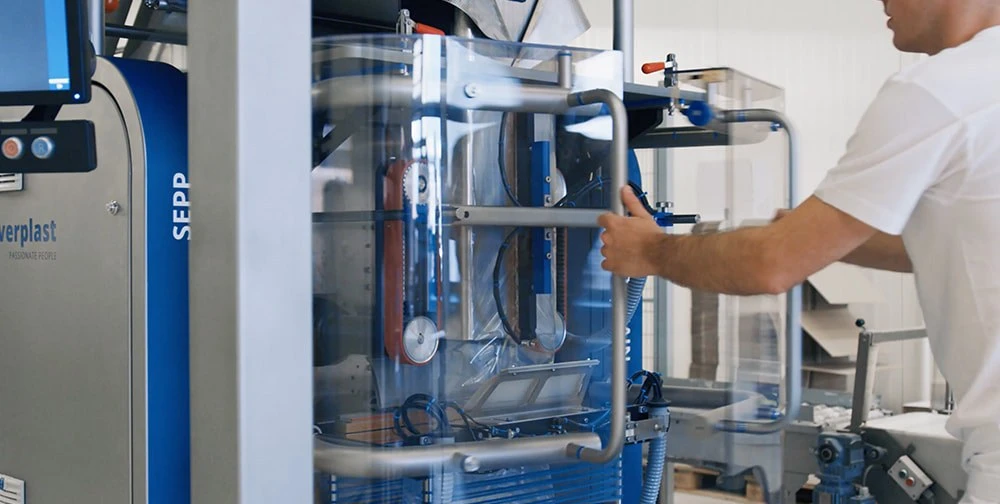

The SEPP - Niverplasts vertical form fill sealing machine - is unique in many ways. To start, the machine can be combined with other packaging solutions, as mentioned above with the case at Wolf Butterpack. The SEPP can also be built into any production line. And because the vertical form fill seal machine is suited for a wide variety of film roll sizes, there is always a perfect fit. Last but not least the SEPP has a compact design with a small floor print, is very easy to adjust and operate and is easily accessible for maintenance and cleaning.

This is how the vertical form fill sealing machine works

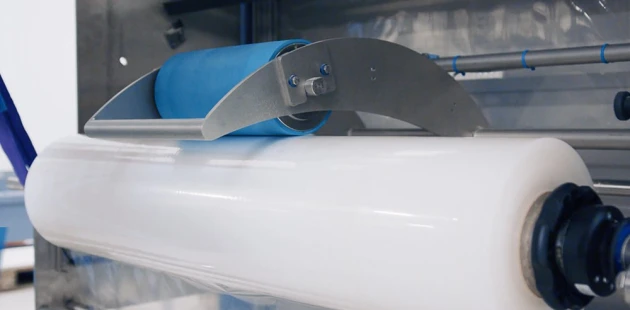

Of course you also want to know how our vertical form fill sealing machine works. Well, this is how! First, the film roll is clamped on the shaft between two cones. The drum motor on the film roll supplies film to the buffer, which starts the process. The forming shoulder then converts the supplied film into a tubular shape. The size of the shoulder is determined by the size of the bags. The film is then transported over the filling pipe. The next step is pressing the vertical sealing bar onto the seam for the length seal. Now the horizontal seam is sealed to form the bottom of the bag. At the same time, the closing seam of the previous bag is formed and the knife cuts both bags apart. During horizontal sealing, the products are added to the bag via the filling pipe. When the batch is ready, this will all be repeated.

Some specifications about the vertical form fill seal machine

After explaining how the vertical form fill seal machine SEPP works, we would also like to share some specifications with you. The SEPP can handle up to 1,800 bags per hour and comes with an easy-to-operate touch IPC interactive and intuitive operating software. This software is available in any language of your choice. The vertical form fill seal machine has a robust design and is completely made from stainless steel. The machine is therefor reliable, has low maintenance and is cost efficient. The SEPP comes with a continuous supply to film buffer and an impulse seal with film cutting blade. Finally the film alignment, which can be operated on the touchscreen, is integrated.

Your customized vertical form fill sealing machine

Another great thing about vertical form fill sealing machine SEPP is that you can customize it to the detail. There are a lot of options which you can choose from, such as a fixed vertical filling position (SEPP90) or a filling position of 45°(SEPP45). Any inclined SEPP can always be put vertical to change the format (motor operated). You can choose a thermo transfer print, a register mark control to indicate the film position or film alignment. Other options are an additional tape table for film change or a trolley with a forklift function, to easily change the film roll and exchange parts. There is also a vibrating module available, to optimize the filling of the bag. And last but not least you can choose an unique module for gusseted bags.

Contact us about our SEPP, your ideal vertical form fill seal machine

Our years of experience as a machine manufacturer will help to provide you with the optimal solution for your production line. We optimize your production process whether it’s a stand-alone machine (only the SEPP) or a complete line (for example: the SEPP combined with the Channel Counter). Do you want to discover all the advantages of our vertical form fill seal machine? Just contact us.
