Case erecting machines

This is how case erector CombiPlast works

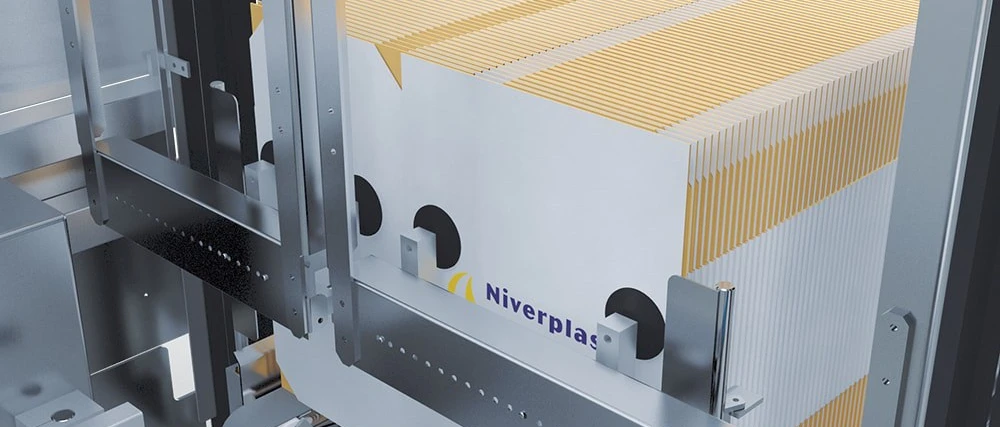

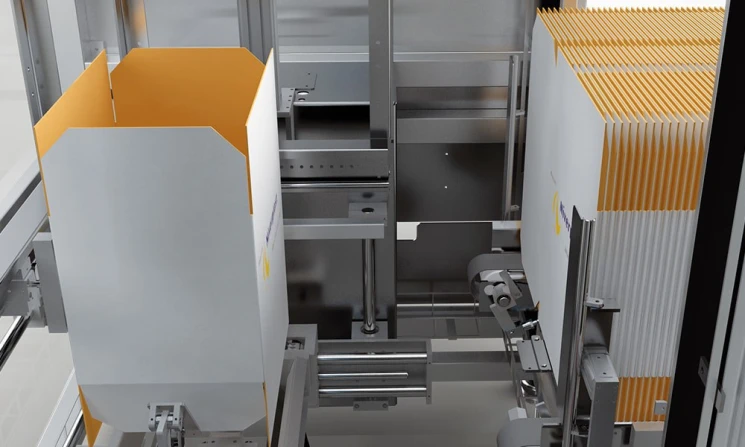

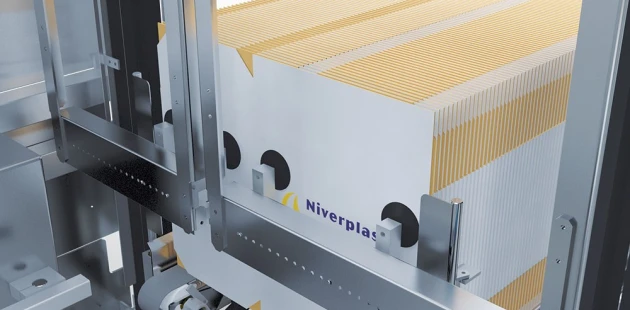

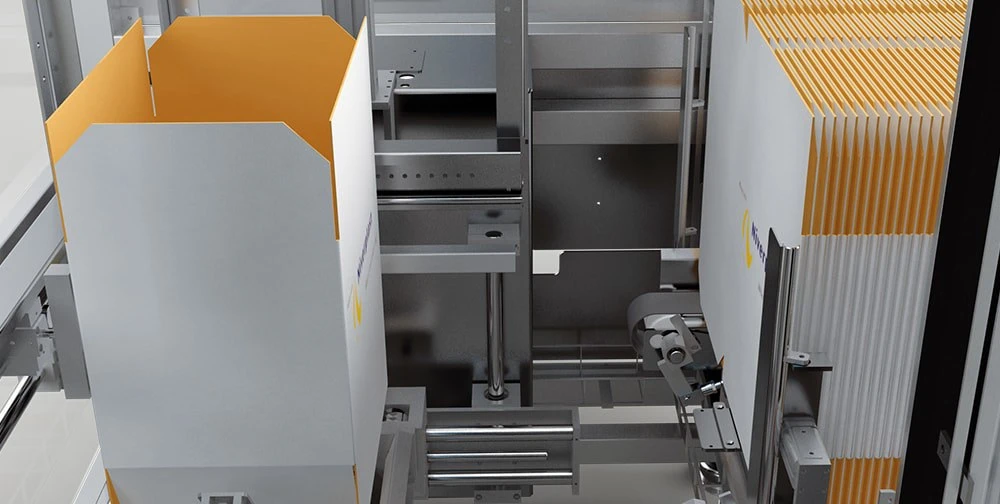

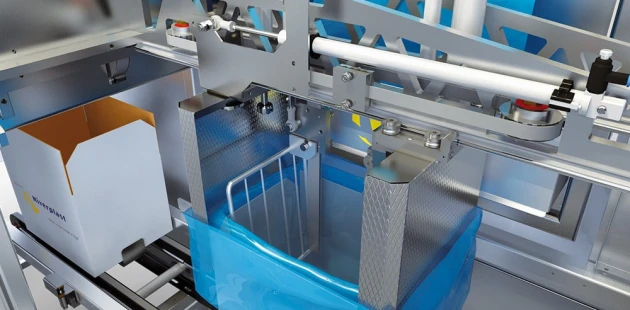

We would like to explain to you how case erector CombiPlast works. The plano is taken from the plano store at long and short side with vacuum cups, positioned on a two-sided frame. This frame guarantees a fully square folding without friction between vacuum cup and plano. While the box is in the squared position the bottom flaps are mechanically folded. After this two side conveyors transport the box towards the bag inserting position where the bottom flaps are taped as well. During the box erecting cycle a prefabricated bag is picked up by a vacuum gripper. Thanks to the EasyOpen system only one bag side is picked up while the other stays onto the bag store. The spreading unit takes over the bag from the bag store. In a downward movement the two spreading plates place the bag tightly over the box corners. While placing the bag, two folding bars move into the box to position the bag tightly in the box corners. In this way the amount of enclosed air between bag and box is minimized.

Case erecting machine CombiPlast

Are you looking for a high quality packaging solution for integrated case erecting and bag placing in one? Then the CombiPlast is your ideal case erecting machine. As said before the machine can handle up to 15 boxes per minute. The CombiPlast handles prefabricated EasyOpen bags down to 10 μm - in case sealing is not necessary. The case erector is very easy to operate and guarantees a 24 hours non-stop production. Furthermore this machine has the following specifications:

• Quick box size change over
• Add and adjust recipes for each box size
• Left- or righthanded version
• On-screen HD visualisation of warnings and possible machine functions
• Operates stand-alone as well as in any automatic production line
• Custom built possibilities on request

Your customized case erecting machine

Another great thing about case erecting machine CombiPlast is that you can customize it. There are a lot of options which you can choose from, such as tight bag placing and data printing. There is a completely stainless steel version available, as well as a high speed version (servo driven). You can choose that there are 1,000 bags in store. There can be an extended or shortened blank magazine. There can be a hotmelt bottom flap closing. And last but not least the bags can have a 45° bottom cross seal, which results in bags with square bottoms to prevent that your product stays behind in the corners of the film.

Case erector CombiPlast: a successful case

Clients praise Niverplast for our case erector CombiPlast, which as you know combines case erecting and bag placing. One of these satisfied clients is this bakery in Austria. In this successful case five Niverplast-machines are combined: the CombiPlast, the VarioSeal (for bag closing), our Quality Checker (for camera quality control), our Speed Batcher (for camera counting) and our Box Loader (for case filling). To lift a corner of the veil: baguettes are accurately counted and because of our smart counting software, there is no over- or undercount. Besides that, our camera counting is developed in such a way that we can also control the length and width of every individual product. After quality and counting, the bread is gently placed in the box after which the packaging process continues with the checkweigher, bag decuffer and taper.

Contact us about our case erecting machine

As you can see, the case erecting machine CombiPlast can be combined with other machines from our packaging lines. With years of experience as a machine manufacturer we can provide you with the optimal case erector - whether it’s with a stand-alone machine or with a complete line. Do you want to discover all the advantages of our case erecting machine CombiPlast? Just contact us.
