Plastic bag sealing machines

Our plastic bag sealing machine: here’s what you need to know

Niverplasts plastic bag sealing machine can handle up to 12 boxes or crates per minute. You can also add, adjust and store recipes for each box size. The machine guarantees a continuous operation and the very compact design is available in a lefthanded and a righthanded version. There is an on-screen HD visualisation of warnings and possible machine functions. The plastic bag sealing machine operates stand-alone as well as in any automatic production line. And if you want, we can customize your unique VarioSeal to the smallest detail.

Plastic bag sealing machine: how does it work?

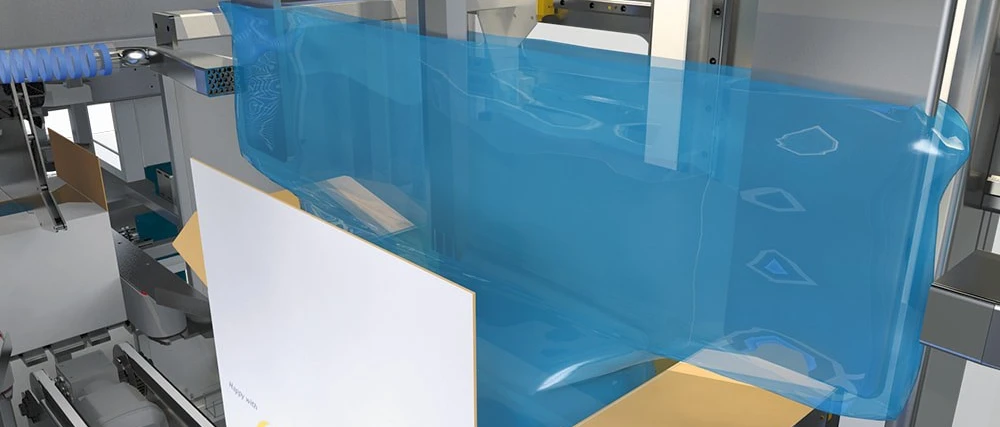

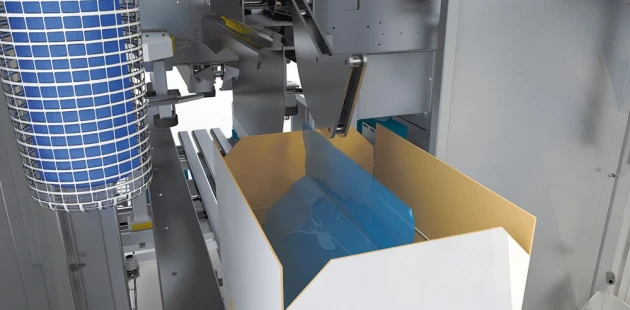

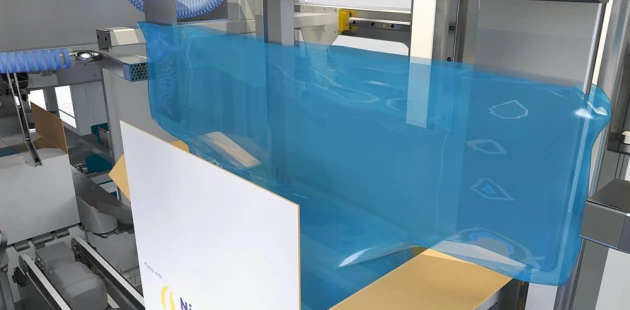

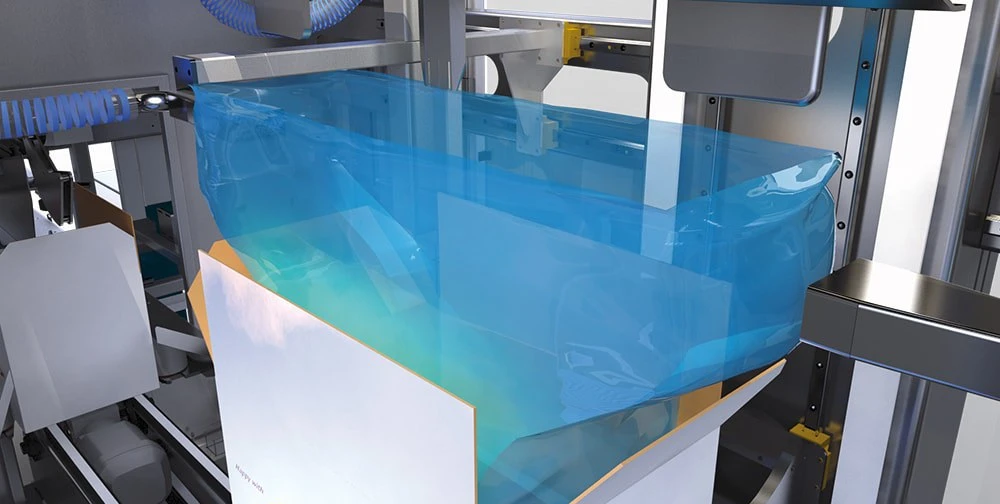

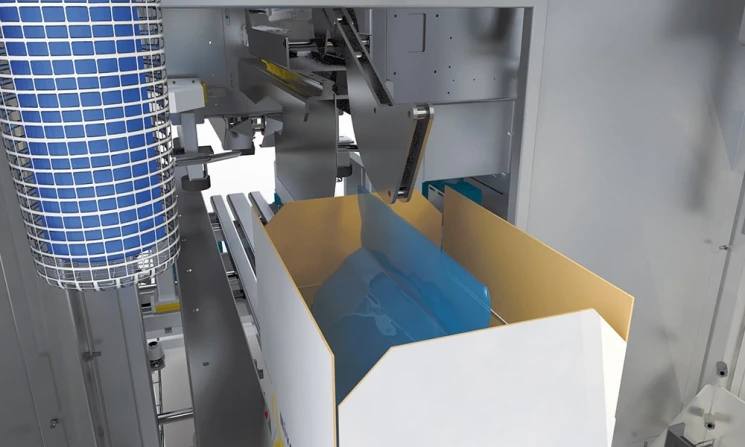

At the infeed of the VarioSeal the box (or your product carrier) is centered to ensure its position. Optionally the weight of the box is checked in this step. Rejected boxes are ejected onto an error conveyor. The box is then lifted towards the seal unit. Here two vacuum cups pick up the plastic bag on the short sides of the box. The box is now moved downwards to release the plastic bag from the box flaps. Two spreading fingers and a vacuum nozzle are placed in the plastic bag. The spreading fingers take over the plastic bag from the vacuum cups and spread it. A light vacuum to prevent balloon forming is applied on the plastic bag in this step. After that, the plastic bag will be sealed by sealing bars. The sealing pressure, sealing temperature and sealing time all ensure a perfect seal.

VarioSeal: a couple of unique options

As we wrote before, we can customize your plastic bag sealing machine to the smallest detal. But what are your options exactly? We will tell you. For starters the waste material above the seal can be cut and removed. There is an option to close the box by the integrated taper, so that your product is safely packed in a closed plastic bag and a closed box and is ready to be transported to your customers. Other options are

• Removal of excessive material above the seal
• Suitable to seal barrier materials
• Completely executed in stainless steel
• Integrated box (top)taper with automatic settings
• Modified Atmosphere Packaging (MAP)
• Data printing
• Impulse sealing bar suitable for seal barrier materials
• Removal of excessive material above the seal
• Integrated check weigher

Succesful cases with plastic bag sealing machine VarioSeal

The plastic bag sealing machine VarioSeal can be perfectly combined with our VarioClip, a high quality packaging solution for bag clipping, and our VarioFold, a high quality packaging solution for bag folding. But there are more possibilities at Niverplast. In many of our succesful cases satisfied Niverplast customers tell you all about how the work with the VarioSeal and other machines from our packaging line. Check out the cases here. And when you are inspired after reading these customer stories and want to discover all the advantages of our plastic bag sealing machine VarioSeal, just contact us.
