Form fill sealing machines

Form fill sealing with the SEPP: this is how it works

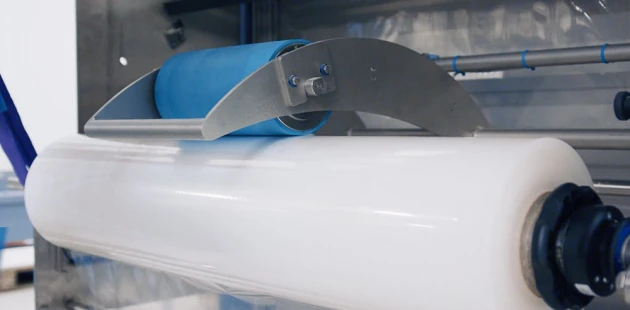

Form fill sealing is very easy with the form fill sealing machine SEPP from Niverplast. We would like to explain to you how this machine works. First, the film roll is clamped on the shaft between two cones. The drum motor on the film roll supplies film to the buffer, which starts the process. The next step? The forming shoulder converts the supplied film into a tubular shape. The size of the shoulder is determined by the size of the bags. The film is then transported over the filling pipe. The next step is pressing the vertical sealing bar onto the seam for the length seal. Now the horizontal seam is sealed to form the bottom of the bag. At the same time, the closing seam of the previous bag is formed and the knife cuts both bags apart. During horizontal sealing, the products are added to the bag via the filling pipe. When the batch is ready, this will all be repeated.

Niverplasts form fill sealing machine: some specifications and facts

Of course we would also like to share some specifications and interesting facts about form fill sealing machine SEPP with you. To start, the machine can handle up to 1,800 bags per hour. The supplied interactive and intuitive operating software is available in a language of your choice. The machine also comes with and an easy-to-operate touch IPC and has a robust, stainless steel design. The form fill sealing machine is reliable, low maintenance and cost efficient. SEPP comes with a continuous supply to film buffer and an impulse seal with film cutting blade. And last but not least the film alignment, which can be operated on the touchscreen, is integrated.

Your customized form fill seal machine

Are you looking for a form fill seal machine which you can customize to the detail? Great news, because this is possible with the SEPP. There are a lot of options which you can choose from, such as a fixed vertical filling position (SEPP90) or a filling position of 45°(SEPP45). And here are some other possibilities:

• Any inclined SEPP can always be put vertical to change the format (motor operated).
• You can choose a thermo transfer print.
• You can choose a register mark control to indicate the film position or film alignment.
• There is an additional tape table for film change or a trolley with a forklift function, to easily change the film roll and exchange parts.
• There is also a vibrating module available, to optimize the filling of the bag.
• You can choose an unique module for gusseted bags.

A form fill sealing machine combined with a counting solution

Clients praise Niverplast for our form fill sealing machine SEPP. One of these clients is Wolf Butterback. With our unique solution (our SEPP combined with the Channel Counter, a high quality counting solution for batch making) Wolf Butterback supplies three vertical form fill and seal machines with frozen pastry coming from two separate lines. Filling up the bags is done very gently to make sure the products reach their clients in perfect shape. 10 products demanded is 10 products packed. No more, no less.

Contact us about our form fill seal machine

As you can see, the form fill seal machine can be combined with other machines from the packaging lines of Niverplast. With years of experience as a machine manufacturer we are the ideal expert that can provide you with the optimal solution for your production line. We help you with form fill sealing and we optimize your production process - whether it’s a stand-alone machine or a complete line. Do you want to discover all the advantages of our form fill seal machine SEPP? Just contact us.
