Industrial bag sealer

The VarioSeal industrial bag sealer

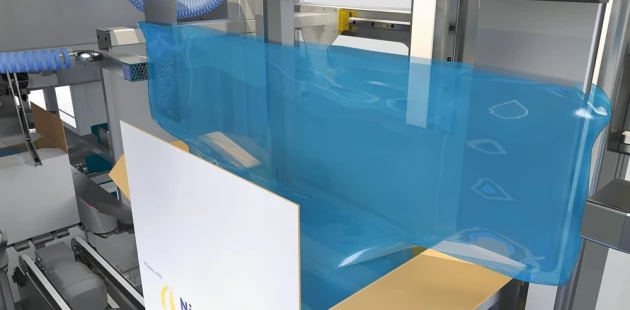

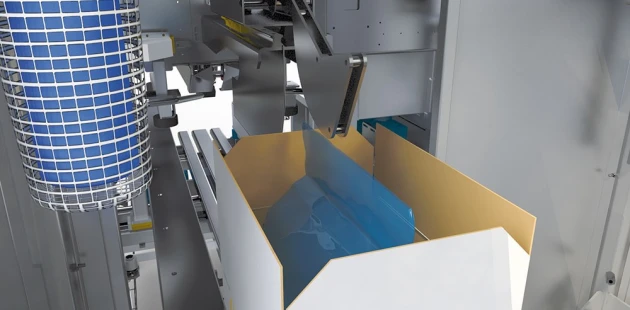

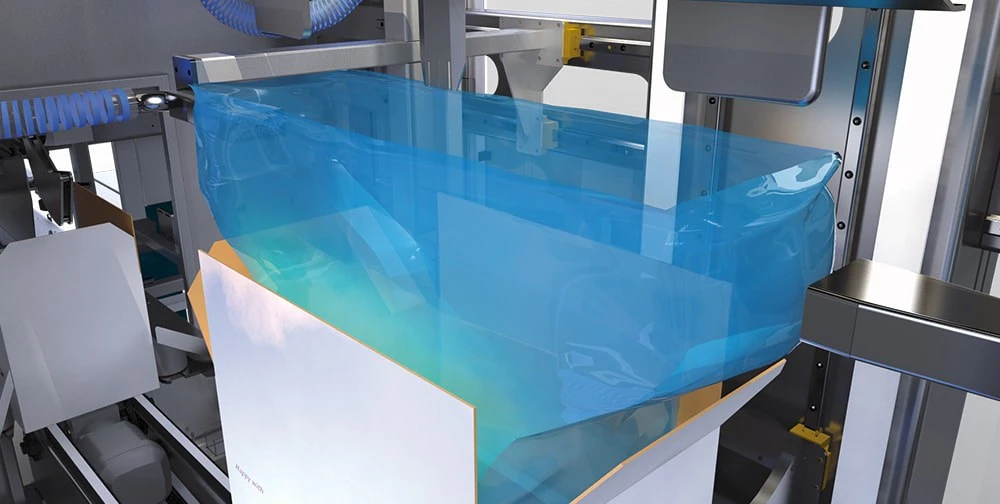

Of course we are more then happy to explain to you how our VarioSeal, an industrial bag sealer, works. At the infeed of the industrial bag sealer the box (or your product carrier) is centered to ensure its position. Optionally the weight of the box is checked in this step. Rejected boxes are ejected onto an error conveyor. The box is then lifted towards the seal unit. Here two vacuum cups pick up the bag on the short sides of the box. The box is now moved downwards to release the bag from the box flaps. Two spreading fingers and a vacuum nozzle are placed in the bag. The spreading fingers take over the bag from the vacuum cups and spread it. A light vacuum to prevent balloon forming is applied on the bag in this step. After that, the bag will be sealed by sealing bars. Our knowledge of sealing pressure, sealing temperature and sealing time ensures a perfect seal.

Your options with our industrial bag sealer

Our industrial bag sealer has a couple of unique options. Optionally the waste material above the seal can be cut and removed. You can also choose the option to close the box by the integrated taper. This way your product is safely packed in a closed bag and a closed box, so it is ready to be transported to your customers. Other options that allow you to customize your machine are

• Removal of excessive material above the seal
• Suitable to seal barrier materials
• Completely executed in stainless steel
• Integrated box (top)taper with automatic settings
• Modified Atmosphere Packaging (MAP)
• Data printing
• Impulse sealing bar suitable for seal barrier materials
• Removal of excessive material above the seal
• Integrated check weigher

An industrial bag sealer: our standard VarioSeal

Of course our industrial bag sealer doesn’t only come with options. Here are some specifications and interesting facts about our standard VarioSeal. To start the industrial bag sealer can handle up to 12 boxes or crates per minute. Second you can add, adjust and store recipes for each box size. The VarioSeal guarantees a continuous operation - there is no change over time. The very compact design is available in a lefthanded and a righthanded version. There is an on-screen HD visualisation of warnings and possible machine functions. The industrial bag sealer operates stand-alone as well as in any automatic production line. And if you want, we can customize your VarioSeal to the smallest detail.

More information about industrial bag sealer VarioSeal

As we wrote before Niverplasts industrial bag sealer can be perfectly combined with the VarioClip, a high quality packaging solution for bag clipping, and the VarioFold, a high quality packaging solution for bag folding. Do you want to discover all the advantages of these combinations? Or do you want to know more about the single industrial bag sealer VarioSeal? Just contact us.
