Bagging machine

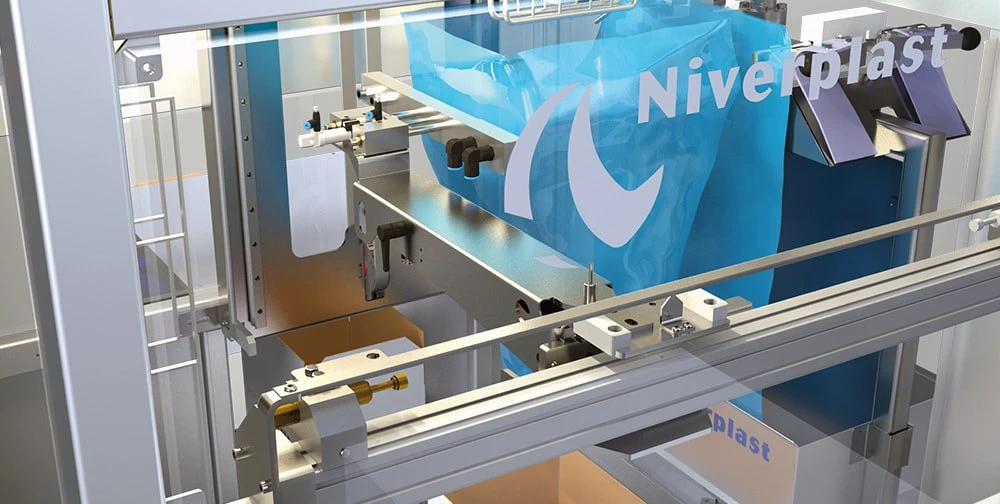

Bagging machine EasyPlast

Bagging machine EasyPlast has three great benefits. It is easy to operate, it works 24-hours non-stop (so no production stop) and it is fast: the bagging machine can handle up to 25 boxes, crates or buckets per minute. The EasyPlast handles prefabricated EasyOpen bags down to 10 μm - sealing is not necessary. A quick size change-over is possible and you can add and adjust recipes for each box size. The very compact design is available in a left- or righthanded version. There is an on-screen HD visualisation of warnings and possible machine functions. The bagging machine operates stand-alone as well as in any automatic production line. And if you want, we can customize the EasyPlast to the smallest detail. There are a lot of options which you can choose from, for example data printing or label application on the bag or 180° upper flap folding before bag placing. There is also a high speed version (servo driven) available. Just contact us to talk about your options.

This is how the bagging machine EasyPlast works

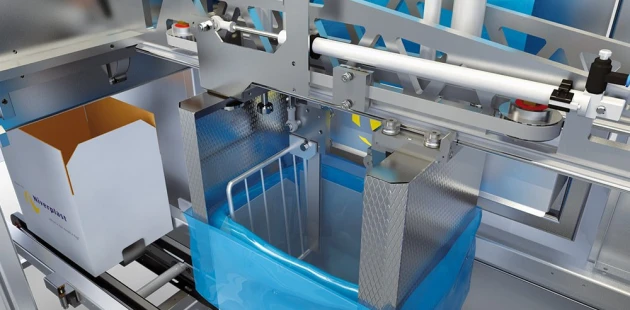

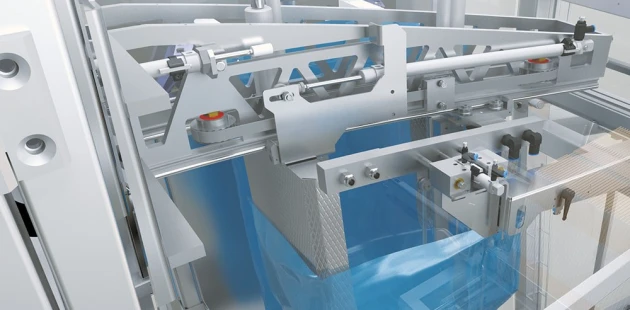

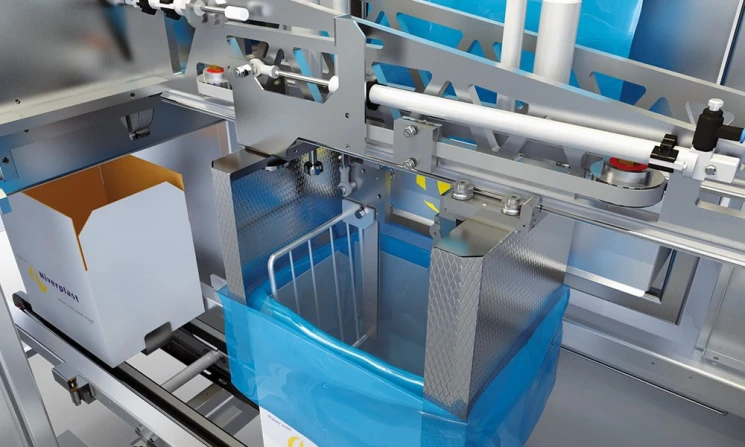

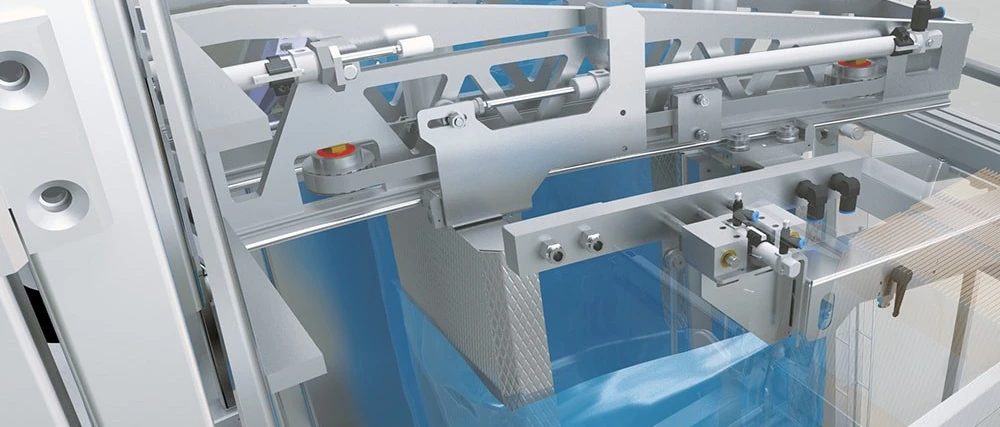

Do you want to know how bagging machine EasyPlast works? Here it goes. Your erected boxes (crates, buckets) are fed into the EasyPlast. During the box input a prefabricated bag is picked up by a vacuum gripper. Thanks to the EasyOpen system only one bag side is picked up while the other stays into the bag store. The spreading unit takes over the bag from the bag store. In a downward movement the two spreading plates place the bag tightly over the box corners. While placing the bag, two folding bars move into the box to position the bag tightly in the box corners. In this way the amount of enclosed air between bag and box is minimized. The result: a bag in a box ready to be filled with your product.

Bagging machine CombiPlast

Are you looking for a high quality packaging solution for integrated case erecting and bag placing in one? Then bagging machine CombiPlast is your ideal solution. This bagging machine can handle up to 15 boxes per minute. The CombiPlast handles prefabricated EasyOpen bags down to 10 μm - in case sealing is not necessary. The bagging machine is very easy to operate and guarantees a 24 hours non-stop production, just like the EasyPlast. And just like the EasyPlast, this machine has the following specifications:

• Quick box size change over
• Add and adjust recipes for each box size
• Left- or righthanded version
• On-screen HD visualisation of warnings and possible machine functions
• Operates stand-alone as well as in any automatic production line
• Custom built possibilities on request

This is how the bagging machine CombiPlast works

There are a lot of similarities between bagging machines EasyPlast and CombiPlast, but also many differences. This is how the CombiPlast works. The plano is taken from the plano store at long and short side with vacuum cups, positioned on a two-sided frame. This frame guarantees a fully square folding without friction between vacuum cup and plano. While the box is in the squared position the bottom flaps are mechanically folded. After this two side conveyors transport the box towards the bag inserting position where the bottom flaps are taped as well. During the box erecting cycle a prefabricated bag is picked up by a vacuum gripper. Thanks to the EasyOpen system only one bag side is picked up while the other stays onto the bag store. The spreading unit takes over the bag from the bag store. In a downward movement the two spreading plates place the bag tightly over the box corners. While placing the bag, two folding bars move into the box to position the bag tightly in the box corners. In this way the amount of enclosed air between bag and box is minimized.

Are you looking for a bagging machine?

As you can see, if you are looking for a bagging machine Niverplast is the way to go. With years of experience as a machine manufacturer we can provide you with the optimal solution for your production line: a manual bagging machine, the EasyPlast or the CombiPlast. Do you want to discover all the advantages of our bagging machines? Or are you curious about the pricing for our bagging machines? Just contact us.
